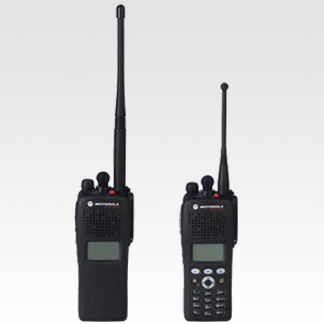

XTS2250 P25 Digital Portable Two-Way Radio

Request a Quote

Motorola Solutions


The XTS2250 portable radio is no longer manufactured, however accessories and replacement parts may be available. Please contact your Motorola representative for additional information.

The XTS2250 digital portable radio offers an exceptional solution to coordination and communication needs. Noise-reduction software eliminates background interference, ensuring a clear, crisp signal. Compliance with P25 standards means reliable transmission and reception across agencies and jurisdictions. The rugged design resists extremes in temperature, shock and weather. The XTS 2250I option can even be immersed in water.

Interoperable Voice Signaling
Operates on P25 analog and digital trunked systems.

Rugged Design
Meets military specs 810 C, 810 D, 810 E and 810 F, for resistance to shocks and extreme weather.

Customer Programming Software
Supports USB and RS-232 functionalities.

Hardware and Software Encryption
Prevents scanners, unwanted listeners and other interference.

Enhanced Audio
Delivers a clear signal via noise reduction software and audio gain control.

Compatibility with Other Two-Way Models
Uses same accessories as some XTS, HT, MT or MTS units.

Built-in FLASHport Support
Allows users customize with new software. Four hardware models offer choice of display:

  • Model I: Basic, with no display
  • Model I.5: Large bitmap display
  • Model II: Large bitmap display and navigation buttons
  • Model III: Large bitmap display and full keypad


Standard Battery Chemistry Type: Nickel Cadmium, Nickel Metal Hydride
Encryption Type / Algorithms: Advanced Digital Privacy (ADP)
Frequency Band: VHF, UHF, 700 MHz, 800 MHz
Battery Life (based on a 5/5/90 duty cycle): 8 hours — High capacity NiCD; 10 hours — High capacity NiMH
Channel Spacing: 12.5, 25
Encryption: Yes
Coverage Area: Programming software allows adjustable power output for varying coverage
Frequency Range:

  • 764-870 MHz
  • VHF – 136-174 MHz
  • UHF – 380-470 MHz, 450-520 MHz

Power: 1–3W—700/800 MHz, 1–5W—UHF, 1–5W—VHF
Keypad: Full, None
Dimensions H x W x D (with standard battery): 10.86 x 2.3 x 1.5 in. (275.84 x 58.42 x 38.1 mm) H x W x D
Display: Full, No display
Weight (with standard battery): 19.85 oz (562.75 g) with NiCD battery; 20.63 oz (584.86 g) with NiMH battery
Number of Channels:

  • 48 (Model I:)
  • 96 (Model 1.5)
  • 870 (Models II & III)

CPS (Customer Programming Software): Yes
Noise Reduction Software: Yes
Integrated Voice and Data: Yes
Man Down: Yes
Digital Technology: Yes
System Type: Conventional, SmartZone trunking, SMARTNET trunking
Factory Mutual: Yes
Mil Spec: 810 C, 810 D, 810 E, 810 F
Submersible: Yes
